Hi All, Anthony Vapes back here with my review of the Wotofo Flux Kit. Please see bottom for disclaimers and links.
Introduction:
The Wotofo Flux Kit is a kit that contains their latest mod designed in collaboration with rig mod company the Flux, paired with their Wotofo Flow Pro Tank. The Flux is a dual 18650 mod rated at 200 watts and is styled to be symmetrical with a
fire
bar and large
full color
screen. Healthcabin has the kit available for 79.99. It’s available in 8
colors
, Black, Light Blue, Blue, Green, Rainbow, Gunmetal, Red, and White. All
colors
have a black frame and come with a matching tank.
Manufacturer’s Specs: Mod
Dimensions: 91.6mm50.8mm30.3mm
Body Material: Zinc alloy
Battery Type: dual replaceable 18650 battery (not included)
Display: OLED 1.3inch
color
screen
Output Range: 5-200W
Firing Mode: Standard/Powerful/Powerful+
Max Charging Current: 1.5A
Resistance Range: 0.08-3.0ohm
Manufacturer’s Specs: Tank
Diameter: 25mm
Height: 41.1mm (without drip tip)
Coil Head: 0.18ohm (40W-60W)
Compatible with SMOK Baby Beast coils
Construction: Stainless Steel + Pyrex Glass
Filling Method: Push-open top fill system with
single
fill port
Capacity: 4ml with
regular
tube; 5ml with
bubble
tube
Fully closable triple adjustable bottom airflow
Included in
box
:
1pc Flux Box Mod
1pc Flow Pro SubTank
1pc 510 Drip Tip Adapter
1pc USB Charging Cable
1pc Bubble Glass Tube
1pc Extra Coil
2pcs User Manuals
1bag Extra O-Rings
Coil Options (all coils are
kanthal
unless otherwise stated)
.25 ohm standard coil 35-60 watts (not included)
.18 ohm mesh coil 40-60 watts (2 included)
baby beast style compatible (GT coils, HW coils, Baby Beast coils, Etc)
Picture Album
album
Initial Impressions and features

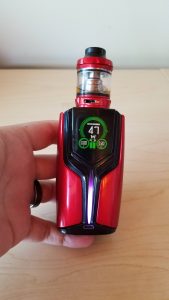

When I first got this Mod, I was pretty impressed with the looks of it. It’s a symmetrical mod with a front facing large color screen and a fire bar. Pretty much the type of mods i like the best. There is a small LED on the front as well for some flair and even though many don’t like LEDs i like them and it blends in well enough you wouldn’t notice it if you turn it off. The paint job is excellent as well. While the body is mostly black the color options have colored in fire bar and matching panel to the side and the coloring is nice and vibrant and has a shiny clear coat looking finish. The rounded edges give it nice comfort and it’s a good size not the smallest but not the biggest dual 18650 mod out there. It’s also a simple power mode only mod much like the squid DB and the augvape V200. The included tank is the Wotofo flow pro, which is just another samey samey DTL sub ohm tank. Pretty much the Wotofo version of the big baby beast which is what i expected. Overall though seemed like a good mod and a decent tank to start.
Performance
The Flux mod doesn’t not have any temp control modes or anything. It’s a power mode only mod with 3 preheat options of standard, powerful, and powerful plus. In other words it has normal preheat, hard preheat, and max preheat as most mods label them. Sadly the performance of this mod was too poor to gather max specs or accuracy. It consistently hunts power like the voopoo “love mode” does and doesn’t provide a smooth power output regardless of the setting. On top of that when i tried to max it out using a .12 ohm build at 200 watts the mod refused to fire and instead gave me an overload protection. Dropping it down to 150 would fire but get really hot. Even trying it at lower watts and higher resistance while it fired fine it still hunted power the whole time. Really poor performer. In normal use “feel wise” It just feels inconsistent. I was constantly adjusting power to try and get a vape like i just got. Sometimes it felt hitting too high while others low. I thought at first it may just be the coil being not so good, but after trying the tank on other mods and other tanks on this mod, and then my testing i found it to be a mod issue and not an issue with the coils or the tank. Overall not much i can say good about this mod as it fails at the 1 thing it is made to do.
Other Usage Notes
The mod uses a standard 5 click to turn on and off. There isn’t a dedicated menu. Pressing up and fire cycles through the preheats. Down and Fire will enter the settings for the LED so you can program that. Pressing up and down locks the mod. That’s all there is to this mod. It’s a very simple easy to use mod.
The Wotofo Flux adjusts by 1 watt increments which I love, I wish all mods did this. It does not round robin wattage which isn’t a big deal but kinda annoying during my testing. The mod itself is built solid but has a lot of button rattle with the up and down buttons, none on the fire bar though. It has a good weight. Feels solid but not heavy. The Battery door is a standard bottom latch style door which fits nice and gave me no issues and doesn’t have any gaps when shut.

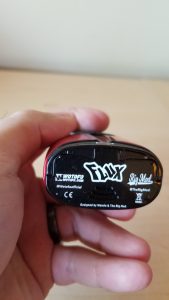

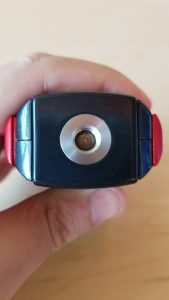

The paint looks nice and doesn’t scratch off, and i have no visible wear on mine and it won’t just scratch off. The fire button is nice large fire bar on the side so you just squeeze the mod to fire. The 510 pin gave me no issues and every atomizer i used on it worked great with no gaps. The mod handles 28mm atomizer flush. Anything bigger will overhang as you can see in the pics with a glaz RTA on it which is 30mm and it overhangs slightly. The screen is a large size 1.3 inch OLED color screen that is nice and bright and easy to see however with the dark tinted plastic over it in the sunlight it’s very hard to see but fine in normal lighting indoors. Also for branding the mod itself is pretty nice overall and not heavily branded. There is a rig mod logo on the back of the mod and nothing else outside of the bottom so good branding. They list 1.5 amp charging as well but i don’t recommend charging internally in your mods and I don’t test charge rates.
Wotofo Flow Pro Tank
The kit comes with a Wotofo Flow tank. It uses the same style coils as the NRG tanks and baby beast tanks and ello tanks so lots of compatible options. It’s a smaller sized tank about the same size as a big baby beast or ello tank. It’s a pretty standard 25mm diameter Sub Ohm Tank similar to another half dozen of them on the market. The tank itself is a good capacity 4ml but also comes with a 5ml bubble glass as well. The top fill is a standard slide back. Works good enough like most but there isn’t a label for the spot you are supposed to push to slide it back which is kind of annoying. They should have marked that. Another issue I ran it too was taking it apart. The bottom o-ring was completely stuck to the glass making it hard to remove. The glass survived me having to pry it off so doesn’t break as easy as some wotofo glass tanks in the past but it did damage the o-ring and I had to peel off the stuck pieces to the glass. You can see that in the pics in the album. It’s not the first tank to do that and won’t be the last but it’s always frustrating everytime it happens. It does come with all the needed accessories (spare glass, 2 coils, spare o-rings etc) and uses a standard 810 friction fit delrin black tip.
Performance Wise It comes with 2 of the same coil which is the .18 ohm mesh coil. The coils are rated for 40-60 watts but i found them best around the 50 watt mark so good ratings on the coils. I wouldn’t push 60 though. They don’t perform very good though. Flavor wise for a mesh coil they are below average. Not as good as the eleaf or vaporesso or even the fat baby mesh and not even close to the plexus, mesh pro coils or fireluke mesh coils. It burned out after 80 ml of juice which is pretty average. It’s not bad but below a lot of other coils i’ve reviewed recently. I have pics in the album of what the coil looks like after 80ml of juice. Typically I like to get at least 100ml of juice per coil. For most people that would be about a week or more. Not really a tank worth looking at these days. You can use the vaporesso or eleaf mesh coils in it though for better performance.
Pros:
Build Quality of mod
tons of color options with matching tank
Simple Easy to use mod
batteries are easy to get in and out without damaging wraps
full watt adjustment
excellent size and color screen
large 5ml juice capacity in tank with bubble glass
nice fill method in tank
nice fire bar
centered 510 pin
great paint job
Cons:
Mod performance was bad
mod gets hot over 150 watts
Tank is a below average performer
button rattle on up and down buttons
tank came with o-ring stuck to the glass
Conclusion
So with all that said, do I recommend this kit or not? I don’t like to do a hard yes or no but this one for me is an easy no. The mod performs very poorly and only does 1 thing so there isn’t a redeeming quality to it. I’ve tested 2 similar mods this year (as in power mode only) the Squid DB V2.1 and the augvape V200. This one performed worse then both and i gave a no to the V200 as well but i’d buy one of those over this anyday as it was at least good at 100 or less watts where this mod isn’t good at any setting. The tank itself is a sub par performer too. Much better tanks on the market even in kits as well. What we have here is a nice looking well built mod and a pretty standard sub ohm tank that both perform way under par. I’d not bother with this kit at all and won’t be adding either to my sheet.
This is Anthony Vapes just keeping it honest, hopefully you all can say the same and i’ll catch you on my next review.
Product Disclaimer
This product was sent to me from healthcabin.net
Review Disclaimer
Due to possible QC difference your experience may vary.
Reviewer Disclaimer
I’ve been doing vape reviews since late 2016 and have done around 200 reviews to date. I enjoy helping vapers on forums as well and helping contribute to the great vape community. I’m not an “out of the box” reviewer. I do my best to be thorough at all times and have enough experience with many products to tell what’s good and what’s not. All mods get tested with an oscilloscope and stress tested and results are posted in my reviews.
